Description
FEATURES:
The processed products are a straight line. It can replace a numerical control processing center
and ordinary grinding equipment with no additional processing parts.
In-house developed straight line bevel edge function can make 45° adjustment.
Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency.
This bevel machine is suitable for batch machine parts production, mold bevel edge.
Using high-speed bevel machine is the current trend of the development of mechanical industry.
and ordinary grinding equipment with no additional processing parts.
In-house developed straight line bevel edge function can make 45° adjustment.
Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency.
This bevel machine is suitable for batch machine parts production, mold bevel edge.
Using high-speed bevel machine is the current trend of the development of mechanical industry.

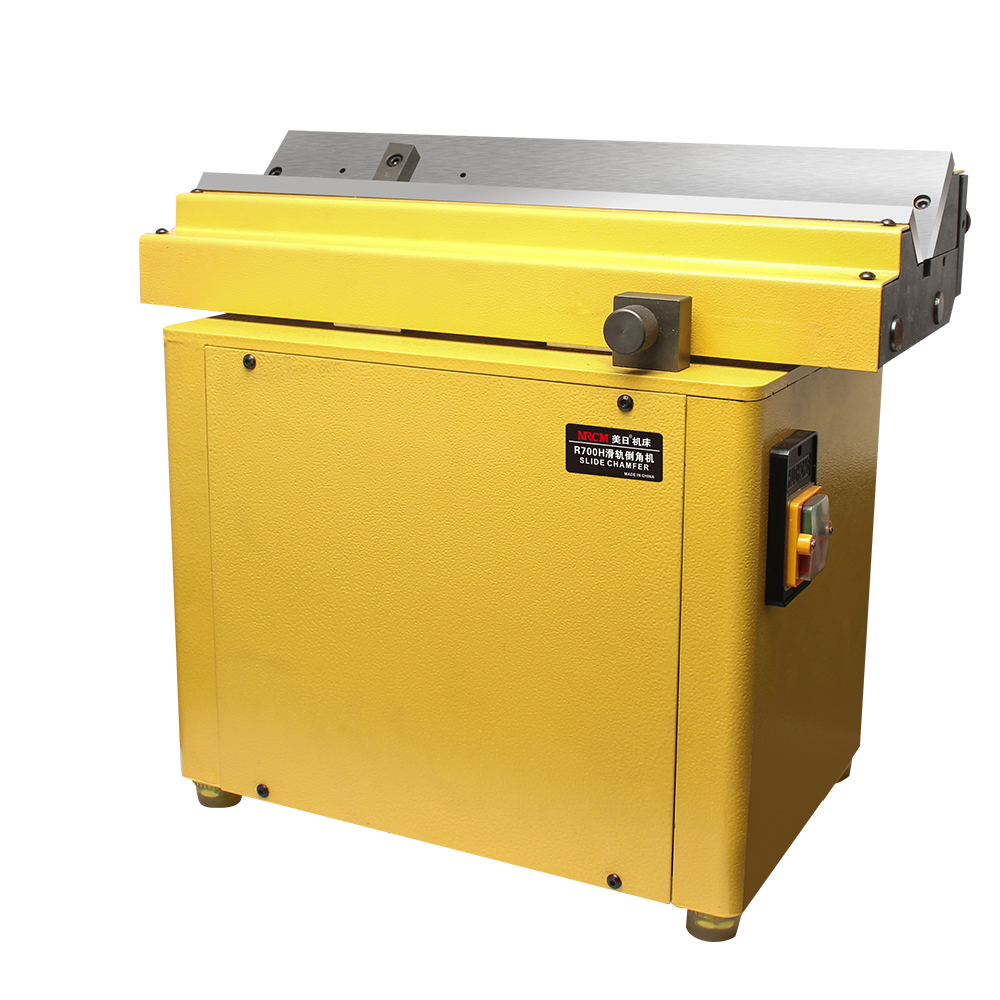

| Model | MR-R700H |
| Straight line angle | 45° |
| Power | 3/4HP(550W), 380V |
| Speed | 8500rpm |
| Chamfering height | 0-3（5）mm |
| Dimensions | 82×33×47cm |
| Weight | 47kg |
| Standard Equipment | Inserts*1 set |
