Description
FEATURES:
PRODUCT INSTRUCTION
1. Portable end mill grinder can grind end mill of two flute, three flute, four flute.
2. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
3. With diamond grinding wheel, only one piece can complete all procedures. It is accurate and with long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.
1. Portable end mill grinder can grind end mill of two flute, three flute, four flute.
2. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
3. With diamond grinding wheel, only one piece can complete all procedures. It is accurate and with long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

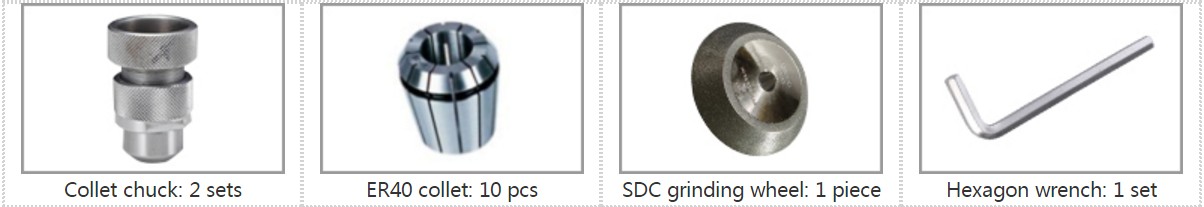

STANDARD EQUIPMENT
SPECIFICATION
Model：MR-X5
Diameter：Φ13-Φ30(Φ32)mm
Power：220V/250W
Speed：4000rpm
Point angle：0°-5°
Dimension：40*28*31cm
Weight：28KG
Standard Equipment：Grinding wheel :CBN(for HSS)×1
Ten collets：Φ12,Φ14,Φ16,Φ18,Φ20,Φ22,Φ24,Φ26,Φ28,Φ30
Two collet chucks:：2,4 flutes ×1 piece; 3,6 flutes×1 piece
Grinding wheel：:SDC(for Carbide)
Model：MR-X5
Diameter：Φ13-Φ30(Φ32)mm
Power：220V/250W
Speed：4000rpm
Point angle：0°-5°
Dimension：40*28*31cm
Weight：28KG
Standard Equipment：Grinding wheel :CBN(for HSS)×1
Ten collets：Φ12,Φ14,Φ16,Φ18,Φ20,Φ22,Φ24,Φ26,Φ28,Φ30
Two collet chucks:：2,4 flutes ×1 piece; 3,6 flutes×1 piece
Grinding wheel：:SDC(for Carbide)

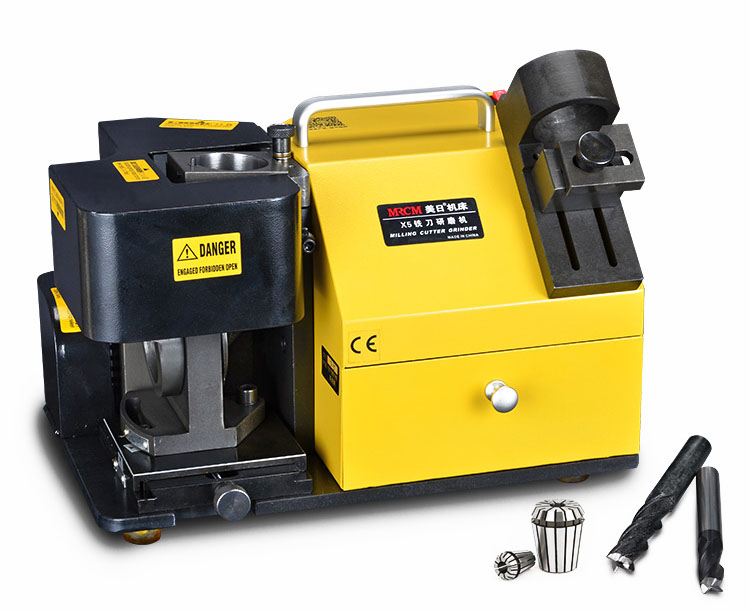

MR-X5

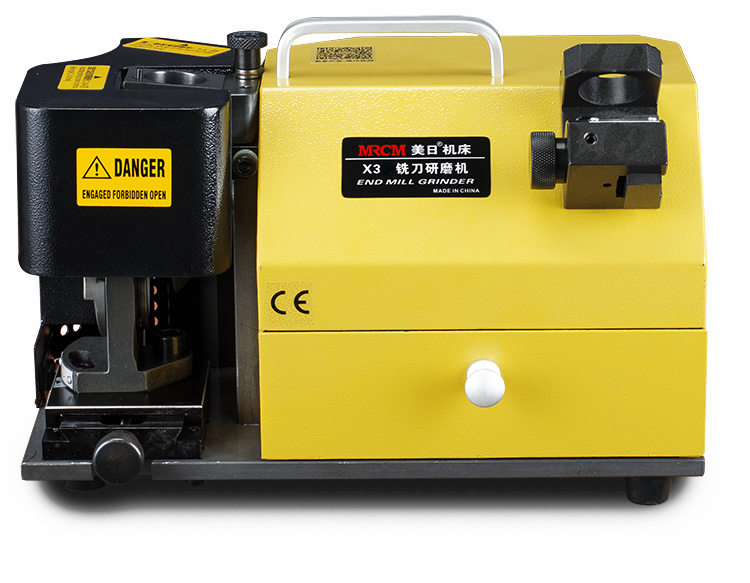

END MILL SHARPENER

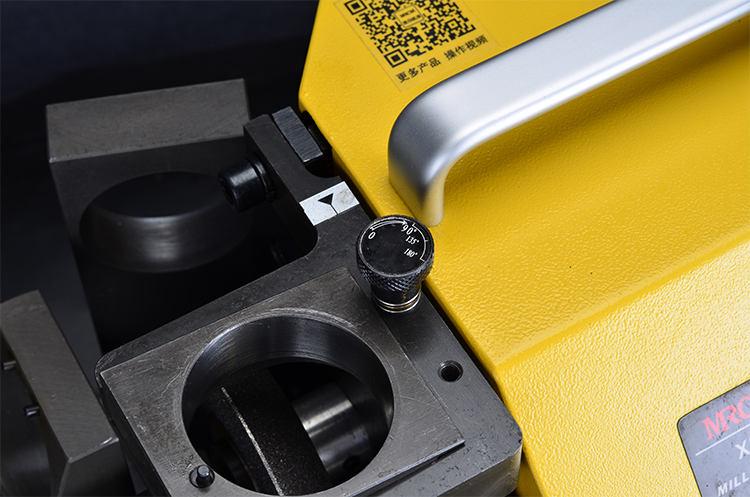

Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small or medium enterprises, family workshops, personal repair, all can achieve satisfying grinding results。
INSISTING ON ORIGINAL DESIGN FROM CHINA

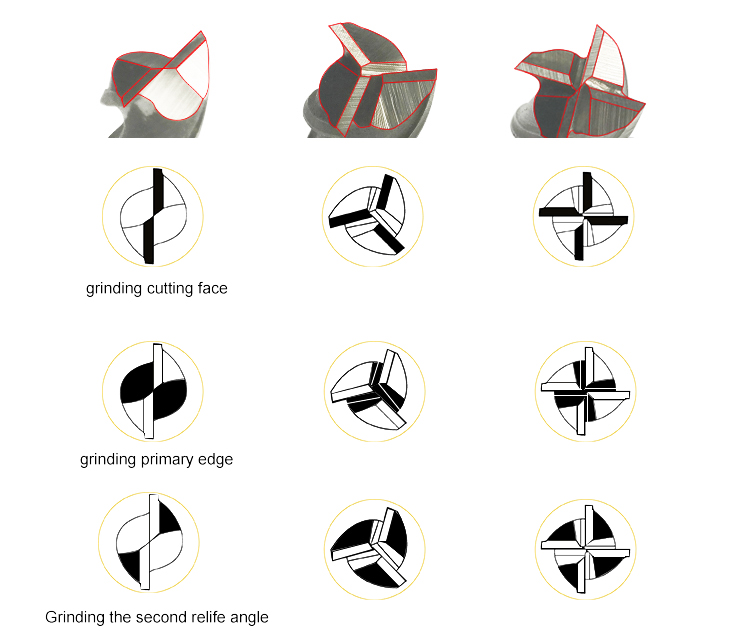

Two -flute, three-flute,four-flute grinding sample
SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.
Portable end mill grinder can grind end mill of two flute, three flute, four flute and six flute. Optional fixture group can grind five flute.
The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
Portable end mill grinder can grind end mill of two flute, three flute, four flute and six flute. Optional fixture group can grind five flute.
The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
